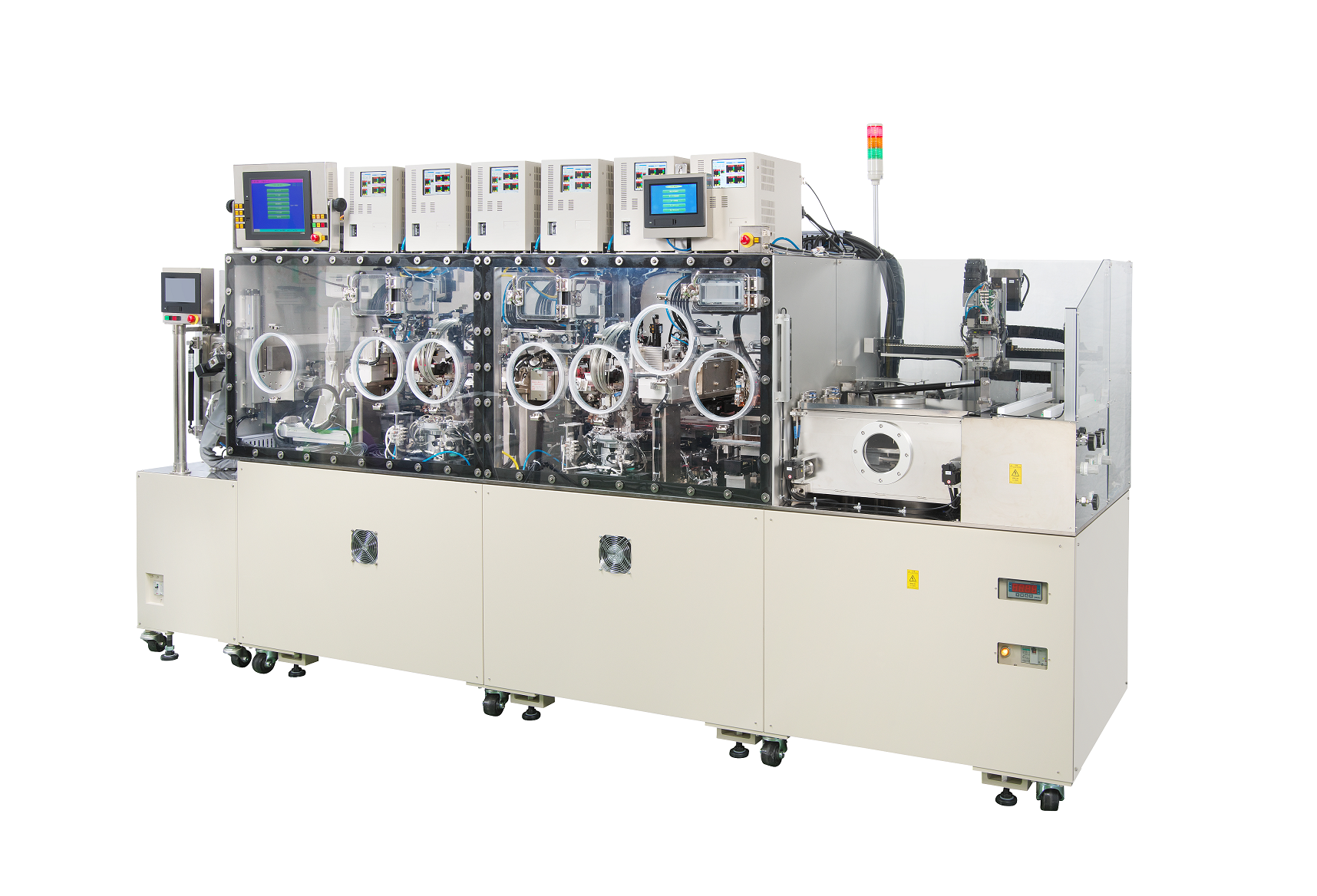

Vacuum Fully Automatic Parallel Seam Sealer
Vacuum Fully Automatic Parallel Seam Sealer
It is a fully automatic seam sealing system that hermetically seals packages such as crystal & SAW devices, optical devices, sensors, and MEMS in vacuum.
The smallest package size accommodated is 1008"

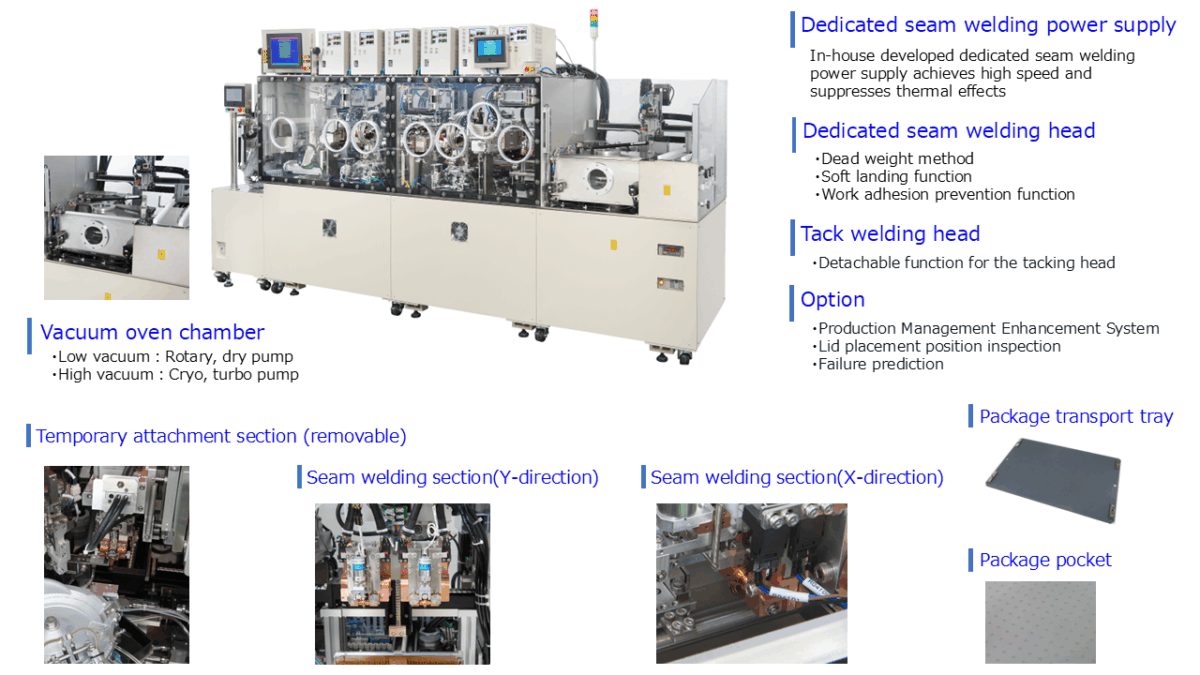

Features
- Fastest Cycle Time 0.4s & High Availability
- Minimum PKG Size 1008
- High reliability sealing
- High Performance Sealing Head & PS
- Easy Maintenance & Product Shift
Parallel Seam Sealer Specifications
| Vacuum Fully Automatic Parallel Seam Sealer | NAW-8000 Series |
|---|---|
| Rated capacity of welding power supply | 2kVA |
| Air | 0.5MPa or more |
| N2 Gas | 0.2MPa or more |
| Water | 0.5MPa 5L/min |
| Power Source: Main Body | AC200V 3Φ 50A |
| Power Source: Chamber | AC200V 3Φ 40A |
| Dimensions | 3573W×900D×1542H mm |
